Mitutoyo Spherical Steel Contact Point

Spherical steel point designed for Mitutoyo indicators but can be used on any other brand dial indicator as long as you select the proper thread size.

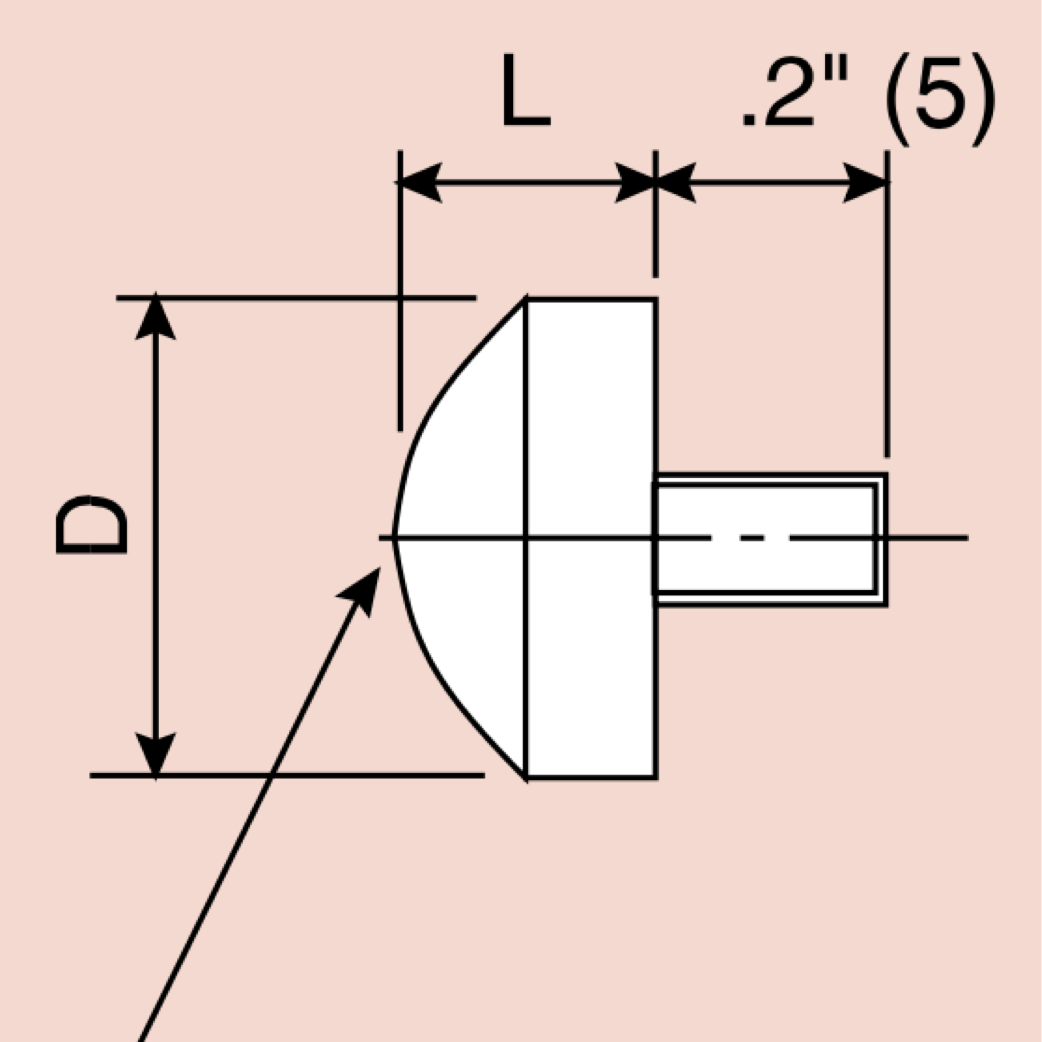

Mitutoyo spherical contact point schematic drawing with dimensions
More about dial and digital indicator contact points
Order No. Mitutoyo No. Diameter (D) Length (L) Radius Thread Price US$
MTC46-01 101205 D = 1/8" L = 1/8" R = .28" Inch 4-48 8.95
MTC46-02 101204 D = 3/8" L = 3/32" R = .35" Inch 4-48 8.95
MTC46-03 101119 D = 10 mm L = 5 mm R = 7 mm Metric M2.5 8.95

GIROD-TAST
The "other" Swiss indicator still made in Switzerland.
