Flat Carbide / Flat Nylon Digital and Dial Indicator Contact Point
These American-made flat contact points have a carbide face on them. They are about the same diameter as most indicator spindles: .185" (7 mm). You'll be able to get them in a variety of lengths but if you need longer lengths, you can get an extension. These carbide points will fit all mechanical and digital dial indicators with inch (4-48) or metric (M2.5) threads. The diameter (ØA) is .185"
We also offer a similar contact point with a nylon surface instead of the carbide. The layer of nylon is about 1.5 mm (± 0.1) in thickness.
- Recessed carbide surfaces are shown at the bottom of this page.
| Order No. | Diameter (ØA) | Material | Length | Thread | US$ |
|---|---|---|---|---|---|
| MTC08-48 | .185" | carbide | 1/4" | 4-48 | 19.50 |
| MTC08-48N | .185" | nylon | 1/4" | 4-48 | 29.50 |
| MTC08-49 | .185" | carbide | 3/8" | 4-48 | 19.50 |
| MTC08-51 | .185" | carbide | 3/4" | 4-48 | 19.50 |
| MTC08-53 | 4.7 mm | carbide | 5 mm | M2.5 | 19.50 |
| MTC08-54 | 4.7 mm | carbide | 10 mm | M2.5 | 19.50 |
| MTC08-55 | 4.7 mm | carbide | 15 mm | M2.5 | 19.50 |
More about dial and digital indicator contact points
- other shapes and sizes
- length extensions
- inch/metric point converter
- are you looking for test indicator contact points?
- contact point set: a full assortment of quality dial indicator points
Flat Point with recessed carbide surface
These flat contact points have a recessed smaller diameter carbide disc brazed onto the surface. They are genuine American-made MTC points designed for Mitutoyo dial indicators and digimatic indicators, but can be used on any indicator having the same thread size.

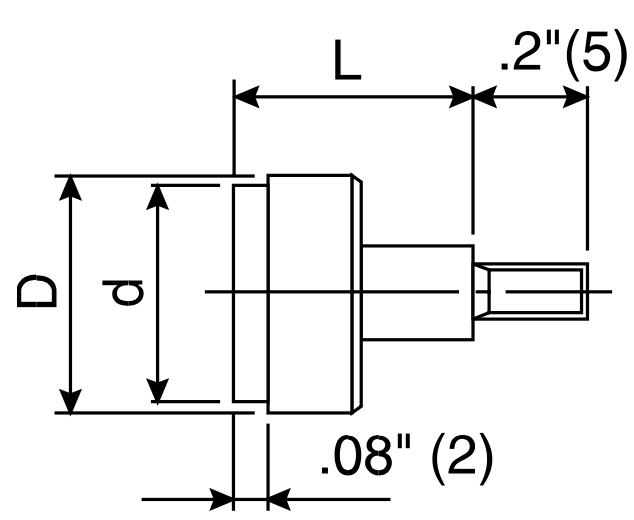

Examine the dimensions (D/d/L) carefully to make sure you get the correct point.
| Order No. | Mitutoyo No. | Thread | (D) | (d) | (L) | US$ |
|---|---|---|---|---|---|---|
| MTC47-09 | 131259 | 4-48 | .2" | .19" | .2" | 21.50 |
| MTC47-10 | 131260 | 4-48 | .27" | .25" | .4" | 32.50 |
| MTC47-11 | 131261 | 4-48 | .41" | .37" | .4" | 39.50 |
| MTC47-12 | 120041 | M2.5 | 5.2 mm | 4.3 mm | 5 mm | 21.50 |
| MTC47-13 | 120042 | M2.5 | 7 mm | 6.5 mm | 10 mm | 32.50 |
| MTC47-14 | 120043 | M2.5 | 10 mm | 9.5 mm | 10 mm | 39.50 |
- the Indicator Reference Guide

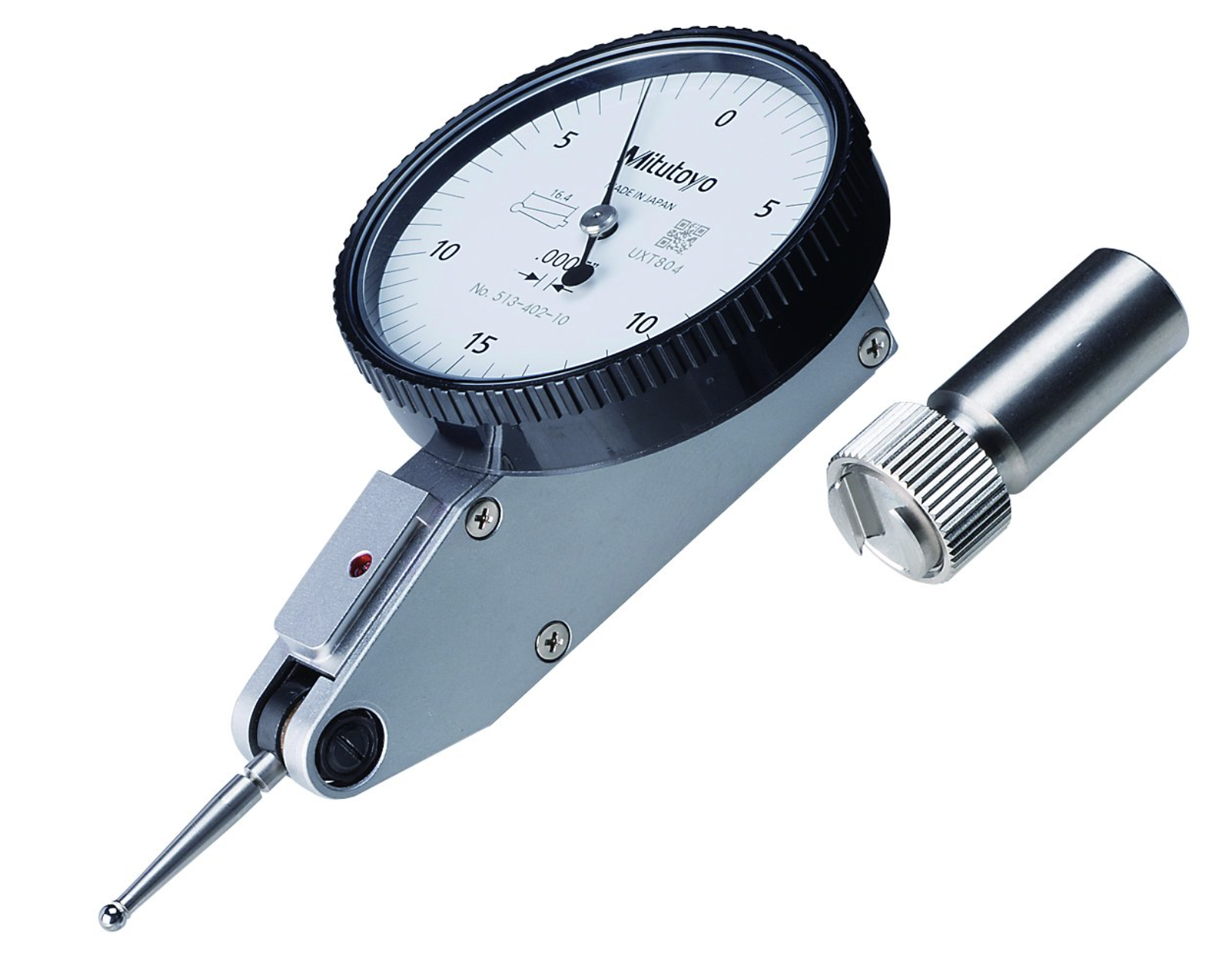

- the best of Mitutoyo on Amazon
- the best of Brown & Sharpe on Amazon

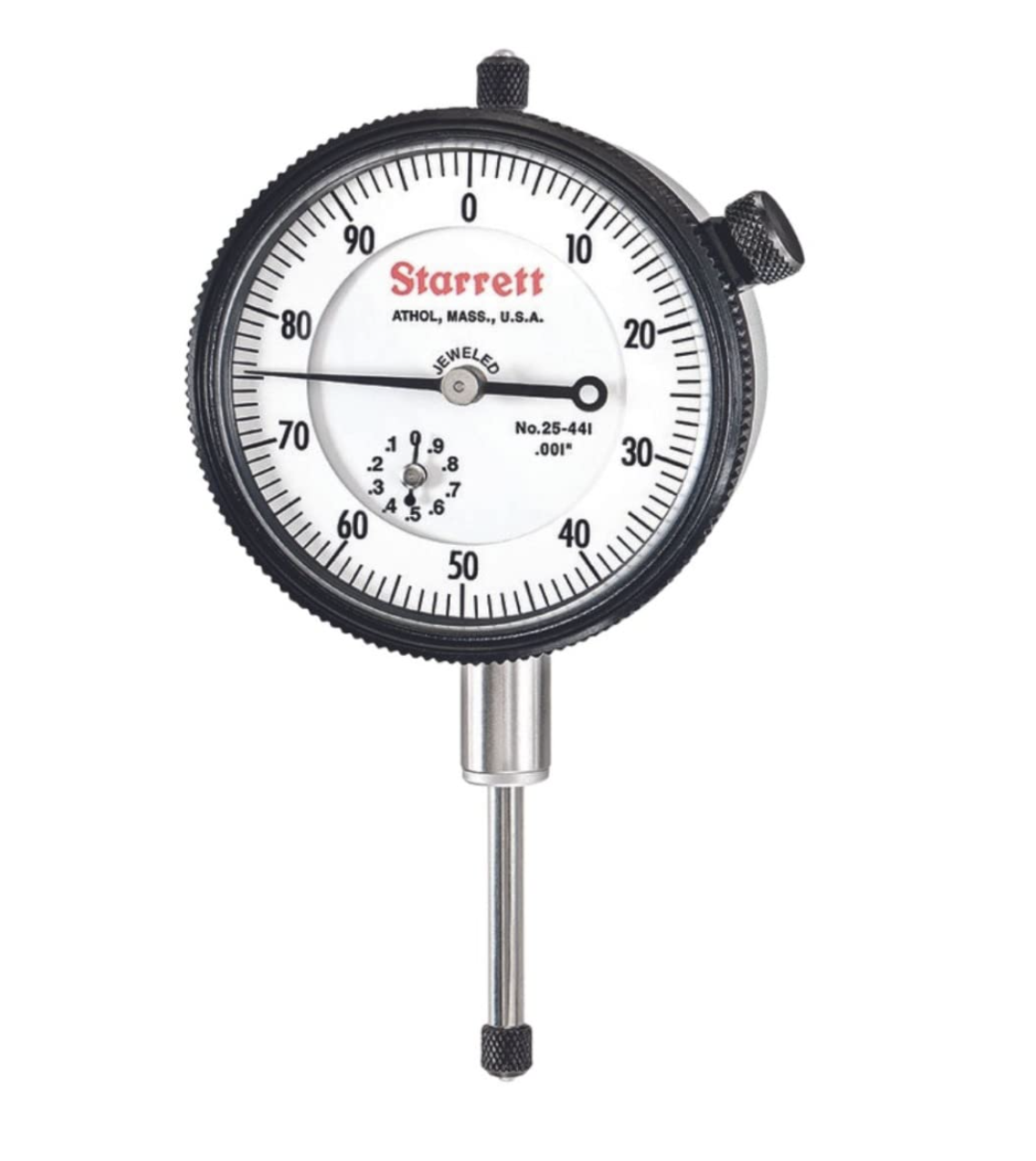

- the best of Starrett on Amazon

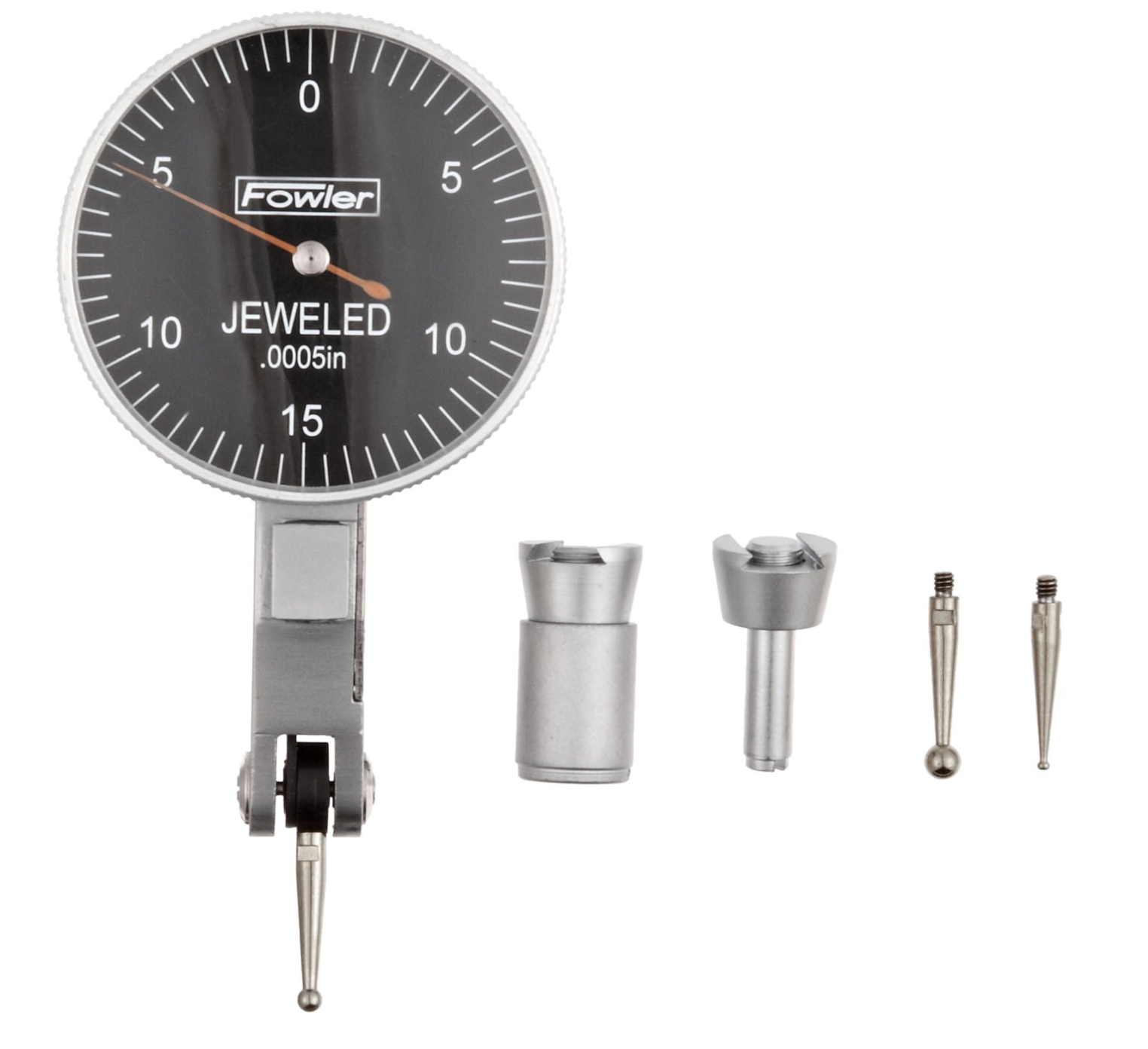

- the best of Fowler on Amazon
