Round Ball Contact
Cupped Style with carbide, ruby, nylon, or Teflon

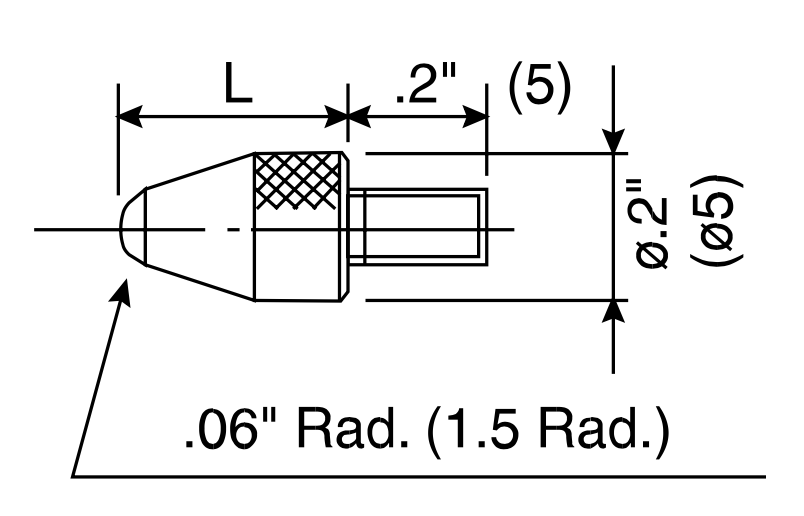

The most common, and probably most useful contact point has a large 3 mm diameter carbide ball (.06" radius) inset into the cupped end of the point. Only a portion of the ball will be visible. The ball does not rotate and is not designed to rotate. This type of contact point should be used when flat surface measurements are taken.
Carbide will provide a long useful life for these points particularly if any sliding motion is involved. Sliding the test piece under the contact point will inevitably wear down the point. For special applications, this ball can be made of synthetic ruby, Teflon or Nylon. The length (L) of the point can be altered by using a separate length extension.
- Inset ball diameter is 3 mm
- Outside diameter is 5 mm
| Order No. | Ball Material | Ball Ø | Thread Ø |
Length (without thread) |
Price US$ |
|---|---|---|---|---|---|
| MTC10-02 | Carbide | 3 mm | 4-48 | .25" | 19.50 |
| MTC10-11 | Carbide | 3 mm | 4-48 | 1" | 19.50 |
| MTC10-03 | Ruby | 3 mm | 4-48 | .25" | 29.50 |
| MTC10-12 | Ruby | 3 mm | 4-48 | 1" | 29.50 |
| MTC10-04 | Teflon | 3 mm | 4-48 | .25" | 29.50 |
| MTC10-13 | Teflon | 3 mm | 4-48 | 1" | 29.50 |
| MTC10-05 | Nylon | 3 mm | 4-48 | .25" | 19.50 |
| MTC10-14 | Nylon | 3 mm | 4-48 | 1" | 19.50 |
| MTC10-07 | Carbide | 3 mm | M2.5 | .25" | 19.50 |
| MTC10-08 | Ruby | 3 mm | M2.5 | .25" | 29.50 |
| MTC10-09 | Teflon | 3 mm | M2.5 | .25" | 29.50 |
| MTC10-10 | Nylon | 3 mm | M2.5 | .25" | 19.50 |
Mitutoyo-style (ø3mm) Ball point
With the exception of MTC44-14, these Mitutoyo style indicator points have recessed .120" (8 mm) diameter balls made of carbide, steel, ceramic or ruby. They will fit any brand indicator with the correct thread diameter.
More about dial and digital indicator contact points
- other shapes and sizes
- length extensions
- inch/metric point converter
- are you looking for test indicator contact points?
- contact point set: a full assortment of quality dial indicator points
NUTS & BOLTS
Easy reading for anyone curious about the origins of mechanical engineering.
HOW WAS THAT BUILT?
From the Brooklyn Bridge to the Sapporo Dome in Japan.
"Perfect for browsing by young readers with an interest in engineering or architecture." - Wall Street Journal
- the Indicator Reference Guide

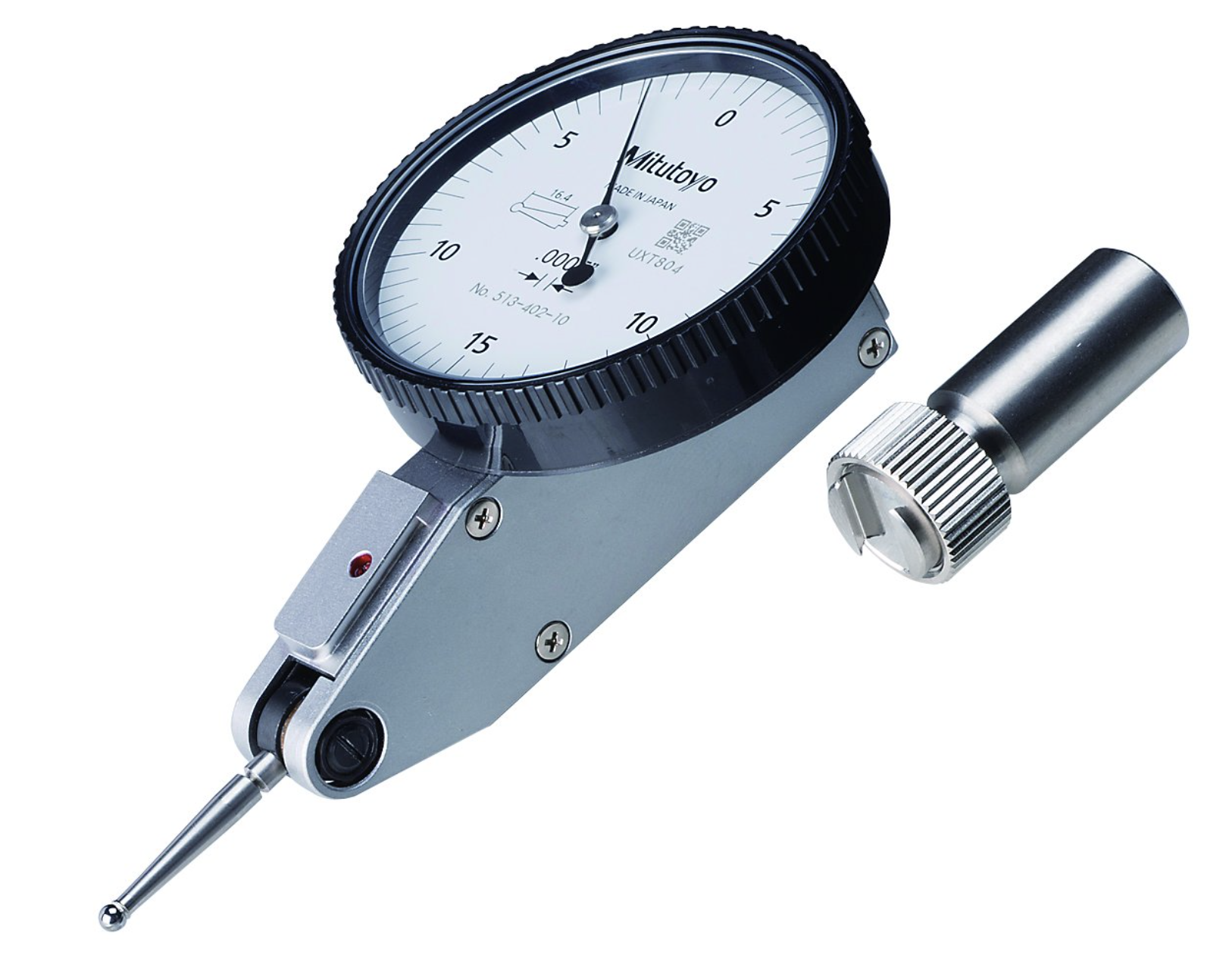

- the best of Mitutoyo on Amazon
- the best of Brown & Sharpe on Amazon

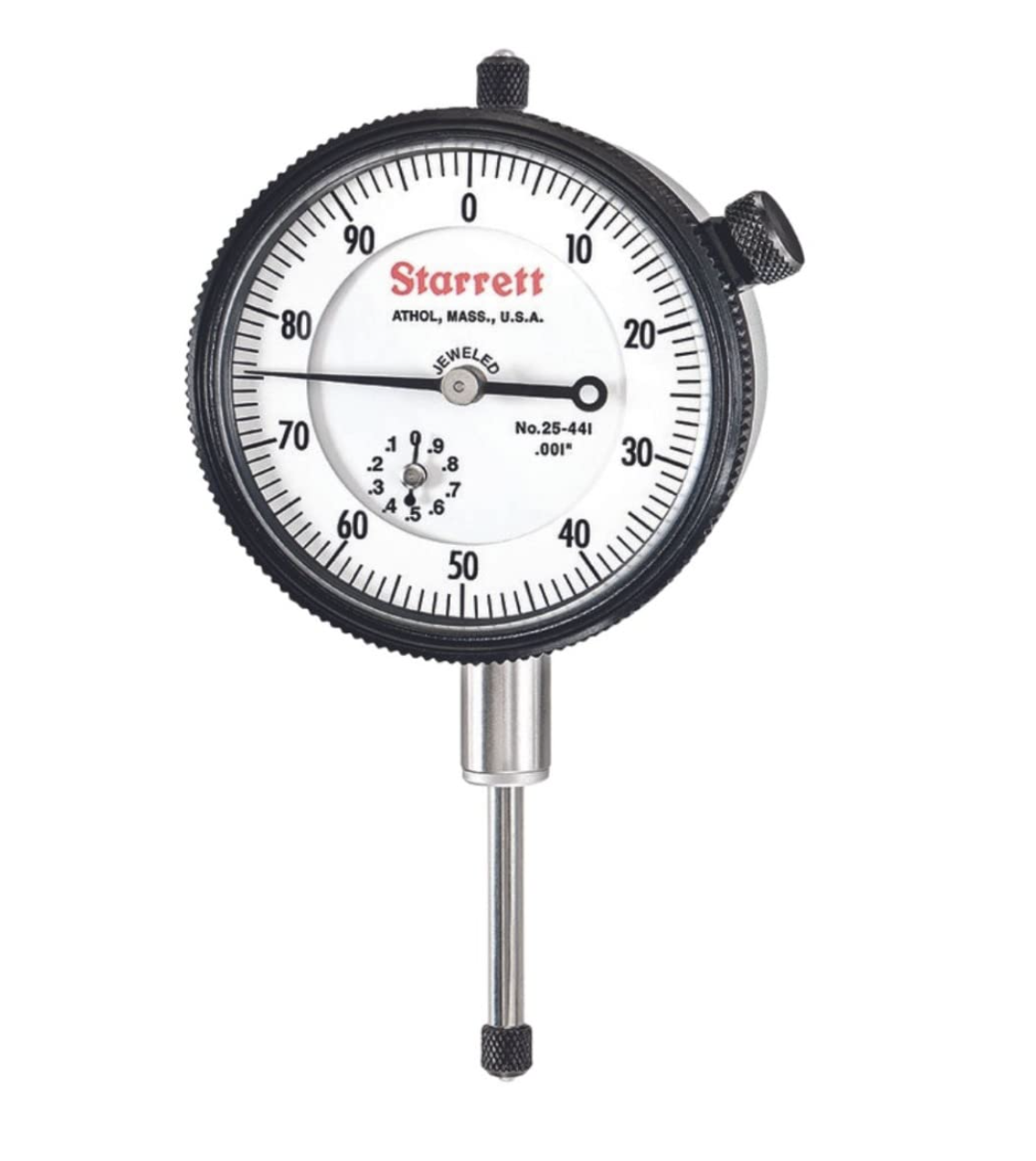

- the best of Starrett on Amazon

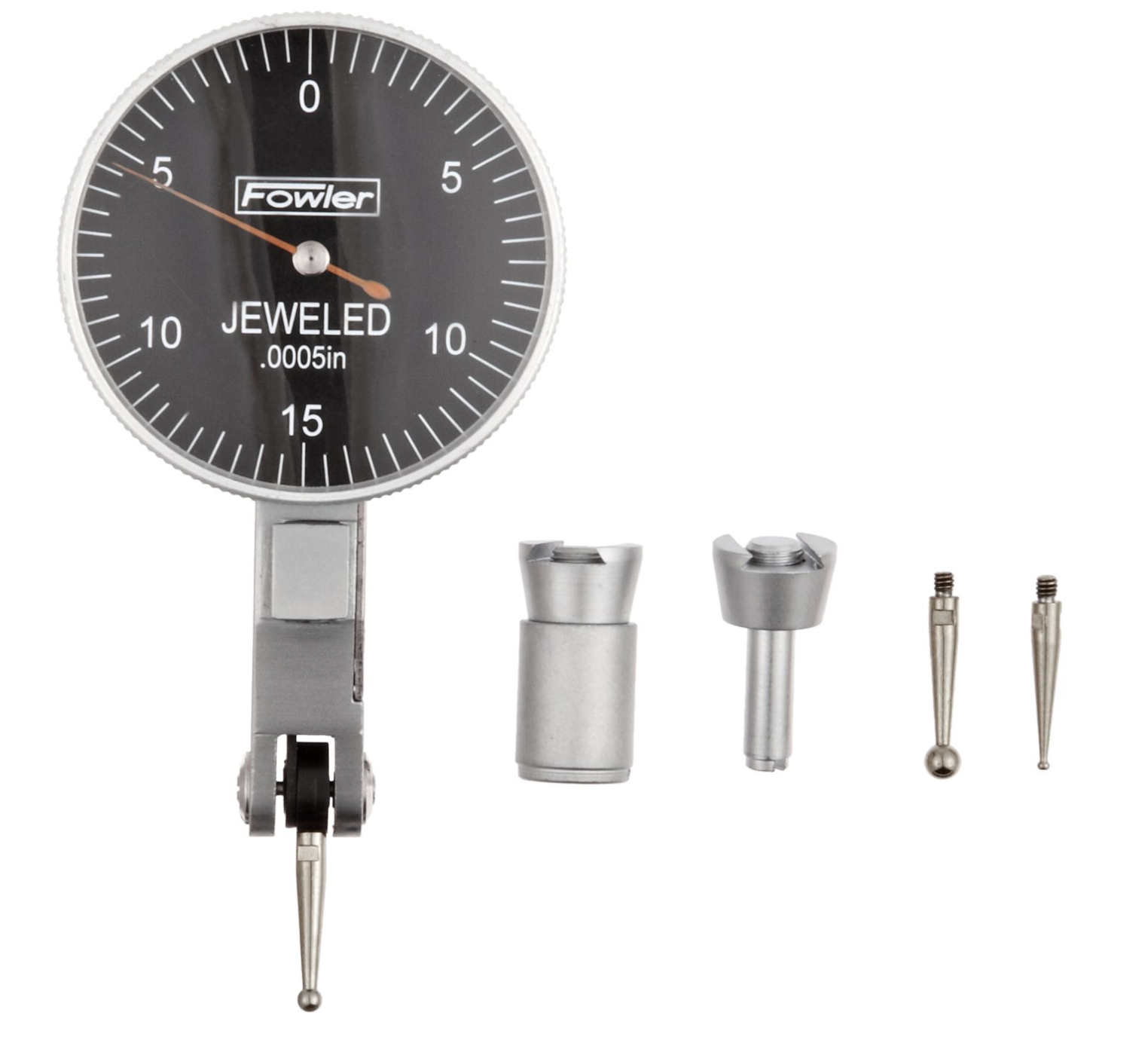

- the best of Fowler on Amazon
