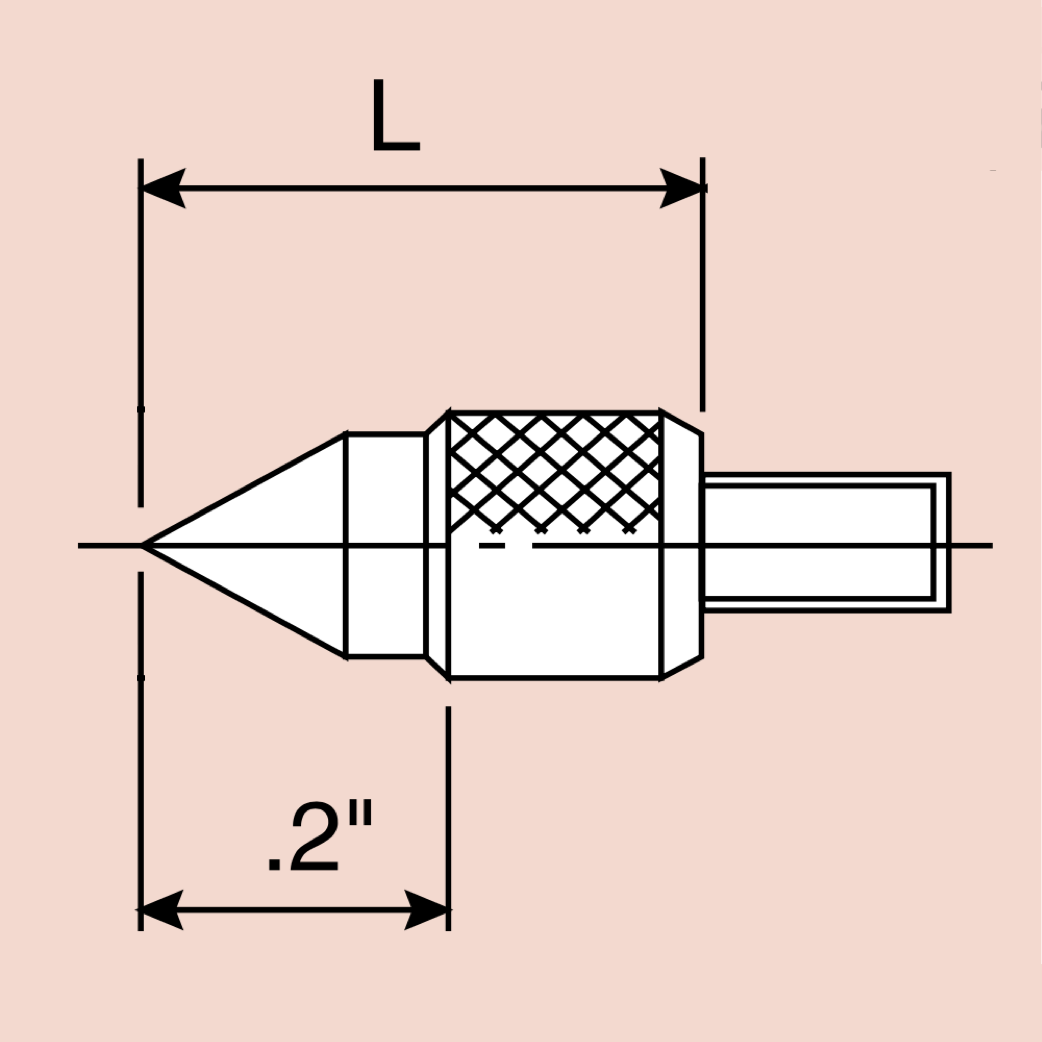

Conical Dial Indicator Contact Points
These conical steel points will fit any dial indicator or digital indicator. You will need to know the thread size or use a converter. They are available with 60-degree or 90-degree angles.
What is thread size?
The way some people bandy the terms 4-48 and M2.5 about, you'd think this was an innate sense we should have been born with.
4-48 is the thread size in inches, and M2.5 is in metric. They're different and one won't fit into the other. Just because your indicator is graduated in inches or in millimeters doesn't automatically tell you which point to use. There are metric reading indicators which have inch threads, and vice versa.
To make sure, take out your micrometer or calipers and measure the diameter of the threaded portion of the contact point which fits your indicators. Allowing for some variations in manufacturing, the 4-48 thread will have a diameter of about .108" to .110" while the metric M2.5 thread will be about .1" (that's 2.5 mm)
The way some people bandy the terms 4-48 and M2.5 about, you'd think this was an innate sense we should have been born with.
4-48 is the thread size in inches, and M2.5 is in metric. They're different and one won't fit into the other. Just because your indicator is graduated in inches or in millimeters doesn't automatically tell you which point to use. There are metric reading indicators which have inch threads, and vice versa.
To make sure, take out your micrometer or calipers and measure the diameter of the threaded portion of the contact point which fits your indicators. Allowing for some variations in manufacturing, the 4-48 thread will have a diameter of about .108" to .110" while the metric M2.5 thread will be about .1" (that's 2.5 mm)
More about dial and digital indicator contact points
- other shapes and sizes
- length extensions
- inch/metric point converter
- are you looking for test indicator contact points?
- contact point set: a full assortment of quality dial indicator points
- the Indicator Reference Guide
- the best of Mitutoyo on Amazon
- the best of Brown & Sharpe on Amazon
- the best of Starrett on Amazon
- the best of Fowler on Amazon
